TUBE

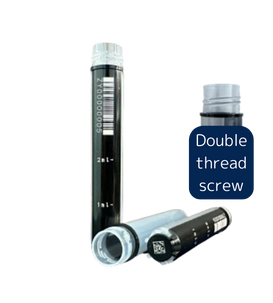

2D Coded Sampling Tube
- Direct laser engraving of barcodes
- Polypropylene (PP)
- Double-sided engraving on the side and bottom
- Dual-thread design allows for easy opening and closing with fewer rotations
- High sealability
- No O-rings or gaskets used
- Autoclavable
- Compatible with MSO
Quality▶
It can be operated with a finger or a mouse.
TUBE Type
CRYO
-196℃~121℃
Ideal for long-term freezing storage.
Jacket Slim
Slim Type
ROBO TUBE
Barcodes on the top, side, and bottom.
Amber
lightproof
translucent
BS(BottomSlim)
Can be extracted without leaving any contents
Screw type
External(Outer)
Threaded on the outside of the tube.
・Pollution Risk Reduction・Type that prevents contents from adhering to screws
Internal(Inner)
Threaded inside the tube.
・Conventional O-ring type with double molding・More airtight than O-rings
CAP
New screw cap withoutO-rings and gaskets
◎Easy sorting for disposal, reducing environmental impact
◎Reduced risk of component dropout, reduced degradation factors
External(Outer)
- Only PP is used, airtightness is up
- Environmental Considerations
- Larger capacity than Internal
- Reduces contamination when attaching and detaching the CAP
Internal(Inner)
- Use only TPE
- Grippy feel and reduced hand strain
- Conventional O-ring type with double molding
Septum Cap(Push-Fit Cap)
- Easy and quick installation by pushing
Shape suitable for semi/full automation
Electric decapper
Automatic Management System
C o l o r s
Many colors available

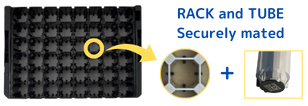

SBS compliant rack with barcode
- The anti-rotation feature of the TUBE allows automatic opening and closing while standing on the RACK.
- SBS standard, highly compatible with 8-row pipettes and automated pipetting systems
COVER
◎Safe lock even if dropped
◎Stackable for space-saving storage
well 24
well 48
well 96
well 240
well 384
STORAGE RACK
well 81
well 100
well 196
FREEZE BOX
Barcode
Our barcodes are laser printed directly on the body.
◎Individual identification of samples is possible ◎Adaptable to any automation
2D barCode
DataMatrix ECC200
Readable after 30% damage
1D barcode
Human readable
Long-term frozen storage possible
Rack scanner enables batch reading
Can be used with microplate-compatible equipment
Automated cold storage possible
TUBE List
| Capacity | 10.0ml | 4.0ml | 2.0ml | 1.5ml | 1.0ml | 0.9ml | 0.7ml | 0.5ml | 0.3ml | 0.2ml | 0.09ml | 0.06ml | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Barcode position |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Top + Side + Bottom 2D + 1D + 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Bottom only 2D |
Bottom only 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Bottom only 2D |
Side + Bottom 1D + 2D |
Side + Bottom 1D + 2D |
Bottom only 2D |
Side + Bottom 1D + 2D |
Bottom only 2D |
Bottom only 2D |
Bottom only 2D |
Bottom only 2D |
| Cap Type | Outer | Outer | Outer | Outer | Outer | Outer | - | Outer | Inner | Inner | Outer | Outer | Inner | Inner | Outer | Inner | Outer | Outer | Inner | Outer | - | - |
| Material | PP | PP | PP | PP | PP | PP | PP&TPE | PP |
[CAP]PP&TPE [TUBE]PP |
[CAP]PP&TPE [TUBE]PP |
PP | PP |
[CAP]PP&TPE [TUBE]PP |
[CAP]PP&TPE [TUBE]PP |
PP |
[CAP]PP&TPE [TUBE]PP |
PP | PP |
[CAP]PP&TPE [TUBE]PP |
PP | [TUBE]PP | [TUBE]PP |
| Working Volume | 7.60ml | 3.80ml | 2.00ml | 1.60ml | 2.00ml | 1.60ml | 1.20ml | 1.00ml | 1.00ml | 0.90ml | 0.90ml | 0.80ml | 0.75ml | 0.70ml | 0.55ml | 0.45ml | 0.50ml | 0.20ml | 0.30ml | 0.20ml | 0.09ml | 0.06ml |
| SBS Rack | 24 tubes | 48 tubes | 48 tubes | 48 tubes | 48 tubes | 48 tubes | 81 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 96 tubes | 240 tubes | 384 tubes | 384 tubes |
| Temperature resistance | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -80℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ | -196℃ ~ 121℃ |
